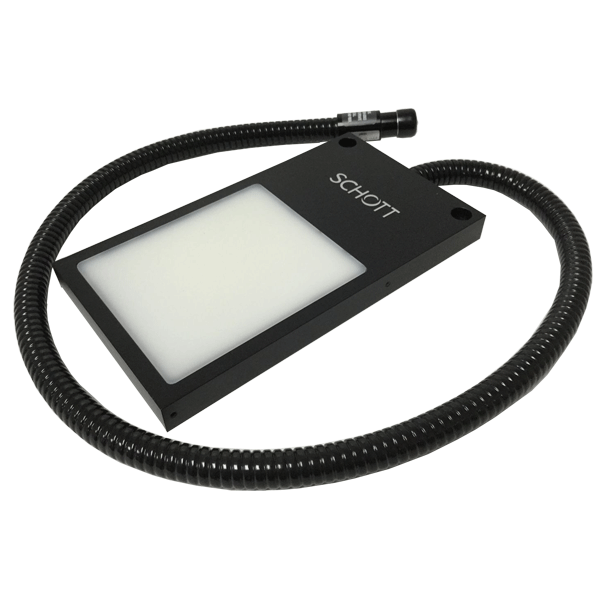

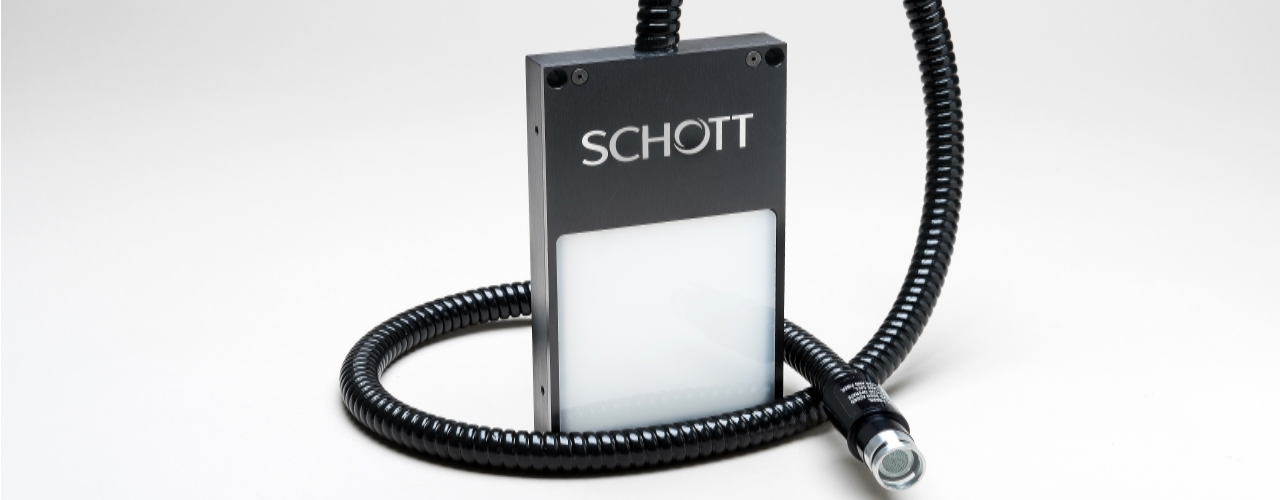

Cold Vision Fiberoptik Backlight SCHOTT: Single and Dual fiberoptical Backlights
Patented SCHOTT Backlights are calibrated to provide bright, even illumination for Microscopy and Machine Vision applications.
Product and Performance Characteristics:
Calibrated with DDL-bulb from ±13 to ±15 gray scale levels at a mean of 200, gamma setting of 1.0, using a patented process to create diffuse, uniform illumination within the active area (Uniformity scans are available from Schott upon request).
- The white acrylic diffuser plate provides the optimum combination of uniformity and intensity, a protective IR filter is included with every unit.
- Backlight housing is made of rugged, black anodized aluminum, the plastic fiber bundle is protected with flexible PVC covered metal tubing.
- Compact, low profile housing fits in small spaces or on microscopes stands from Nikon or Zeiss, etc.
- Can be used to create a crisp edge definition, or soft, diffuse incident light.
- Dual and quad backlights increase lighting versatility, additional combinations and sizes can be custom ordered.
- Intended for use with strobes and Schott, Starlight or Ryf Fiber Optical light sources; other sources, particularly those without an IR filter, may damage the plastic fibers.
- ColdVisiondichroic color filters can be used on the products in conjunction with the A08931 backlight color filter adapter.
|
|
|
|
|
Schott Part No. | Active Area | Housing Dimensions | Gray Scales | Common Bundle Length |
A08920 | 51mm x 51mm | 102 x 66 x 14.9mm | ±13 | 1016mm |
A08923 | 76mm x 76mm | 152 x 89 x 16mm | ±13 | 1016mm |
A08925 | 102mm x 124mm | 229 x 127 x 19.7mm | ±13 | 1016mm |
A08927 | 203mm x 203mm | 305 x 229 x 25.4mm | ±15 | 1016mm |
