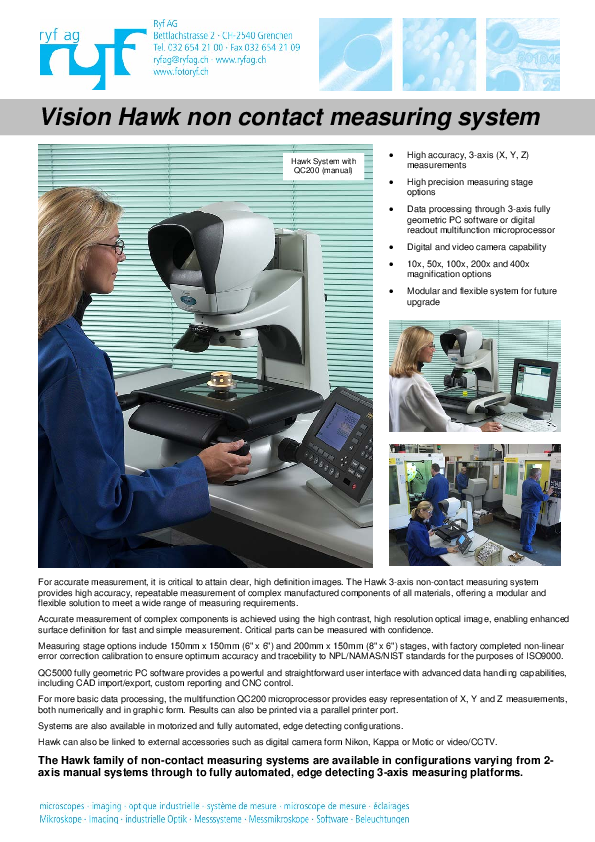

Vision Engineering Hawk (obsolete)

For accurate measurement, it is critical to attain clear, high definition images. The Hawk 3-axis non-contact measuring system provides high accuracy, repeatable measurement of complex manufactured components of all materials, offering a modular and flexible solution to meet a wide range of measuring requirements.

Accurate measurement of complex components is achieved using the high contrast, high resolution optical image, enabling enhanced surface definition for fast and simple measurement. Critical parts can be measured with confidence.

Measuring stage options include 150mm x 150mm (6" x 6") and 200mm x 150mm (8" x 6") stages, with factory completed non-linear error correction calibration to ensure optimum accuracy and tracebility to NPL/NAMAS/NIST standards for the purposes of ISO9000.QC5000 fully geometric PC software provides a powerful and straightforward user interface with advanced data handling capabilities, including CAD import/export, custom reporting and CNC control.

For more basic data processing, the multifunction QC200 microprocessor provides easy representation of X, Y and Z measurements, both numerically and in graphic form. Results can also be printed via a parallel printer port.Systems are also available in motorized and fully automated, edge detecting configurations.

Hawk can also be linked to external accessories such as digital camera form Nikon, Kappa or Motic or video/CCTV.

The Hawk family of non-contact measuring systems are available in configurations varying from 2-axis manual systems through to fully automated, edge detecting 3-axis measuring platforms.
