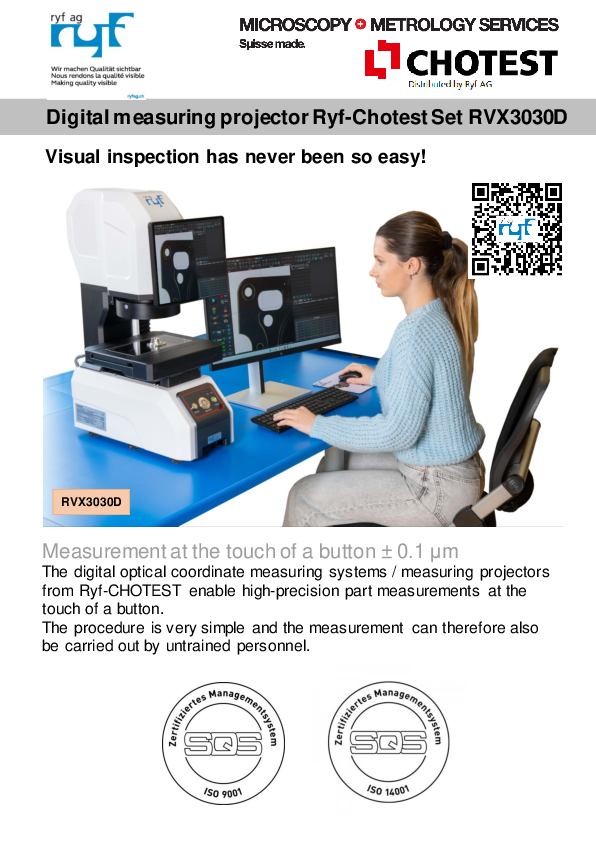

Digital measuring projector Ryf-Chotest Set RVX3030D
The measuring machines in the FLASH 'RVX' series are characterised by their high measuring speed.
They are able to analyse hundreds of unaligned parts in just a few seconds.
This incredible ease of use allows untrained to untrained personnel to analyse in a few seconds.
Thanks to an advanced telecentric lens system, the FLASH machines offer an extremely large 2D view, sharp images, optimal contrast, without distorting the image and still ensuring a high depth of field.
The combination of the two ultra-high-resolution CMOS sensors and innovative deep learning algorithms enables precise visualisation and analysis of even the smallest defects or deviations.
Even the smallest and most difficult to detect deviations or errors can be visualised and analysed.
All models are equipped with different LED illuminations. The Ring LED (incident light) with motorised position adjustment is equipped with its own Z-axis and can be adjusted to any position.
Optical control has never been so easy!
Measurement at the touch of a button ± 0.1 μm
The digital optical coordinate measuring systems / measuring projectors from Ryf-CHOTEST enable high-precision part measurements at the touch of a button. The procedure is very simple and the measurement can therefore also be carried out by untrained personnel.
Camera sensor:
Two 5 MPx, CMOS cameras
Axis and ring light movement:
CNC-motorised
Lens type::
Two telecentric high-end fixed lenses
Software:
VisionX
Resolution:
± 0,1 μm
Repeatability without stitching:
± 0,1 μm / Large field of vision = ± 0,5 μm
Repeatability with stitching:
± 0,5 μm / Large field of vision = ± 1,0 μm
Measuring accuracy without stitching:
± 0,7 μm / Large field of vision = ± 2,0 μm
Measuring accuracy with stitching
± (2+0.02L) μm / Large field of vision = ± (4+0.02L) μm
Field of vision -FOV*:
26 x 6mm und 20 x 20mm
Stiching FOV*:
6mm x 106mm & 20mm x 130mm
Measuring range X-Y-Z:
X = 110mm Y= 20mm (FOV) Z = 30mm
Max. Load:
2 kg
Outer dimensions (LxBxH):
500x280x670mm / Total weight 31kg
Two screens:
10,4 Zoll XGA, 1024x768 and 24 Zoll, XGA 1920x1080
Standard lighting:
Coaxial LED transmitted light and segment ring light, motorised
Optional lighting:
Coaxial incident light LED / fade-in
Automatic calibration:
Quite simply with the large chessboard measuring glass plate
Computer:
HP PC with appropriate graphics cards with WIN11/10 (incl.)
Warranty:
24-month Ryf full warranty with on-site support
(*FOV = Field of View)
