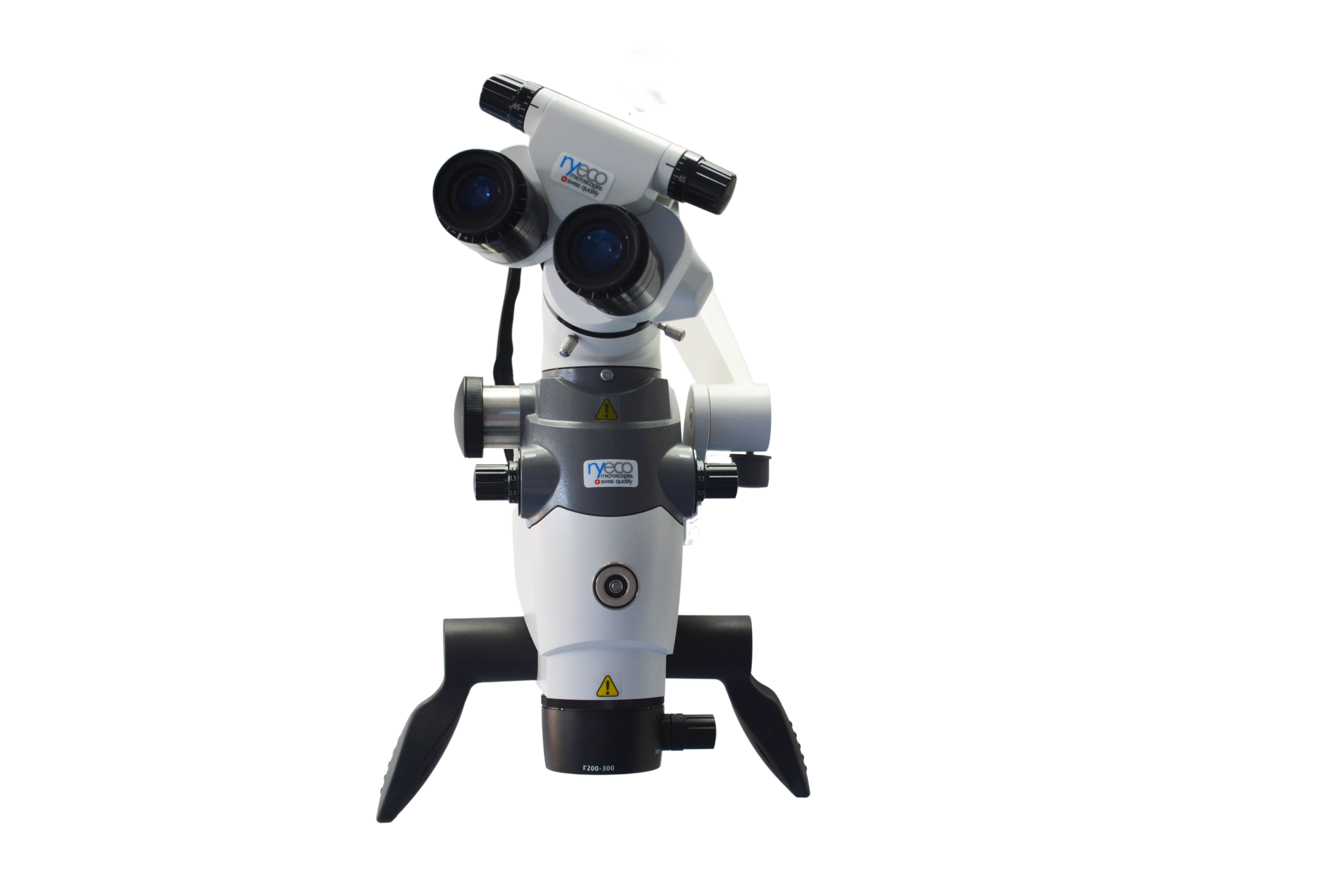

Ryf-Ryeco AM-6000

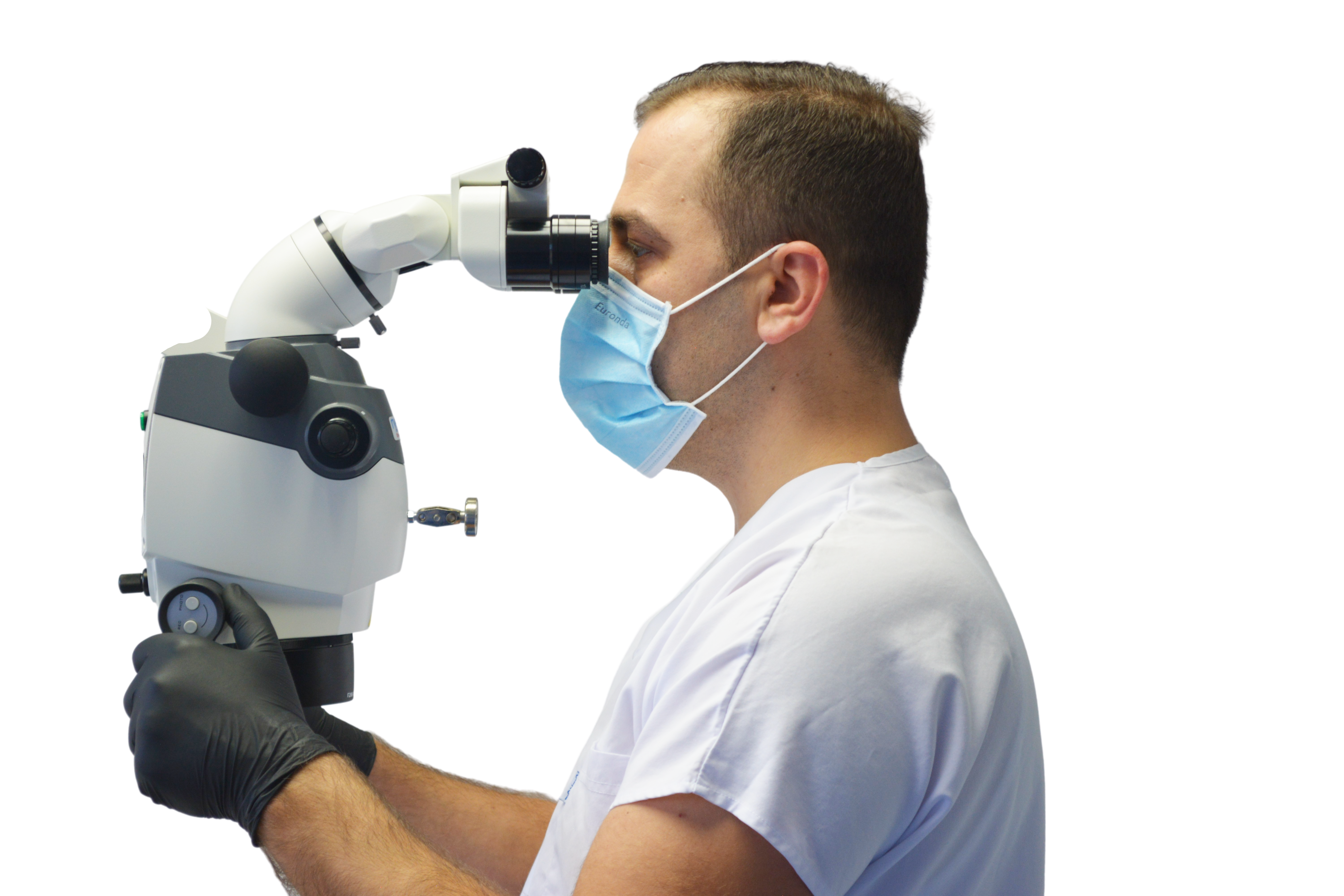

Perfect adapted for Dentists: easy to find the 3D stereo view and a very comfortable view due to the extremely large field of view with the RYECO AM6000

• The field of view of the 10X eyepiece is large (23mm).

• 1:8 Zoom Ratio and magnification range is the largest one in the market.

• Built-in full function Ryeco FULL HD camera comes with high-definition image and multi functions Software including (no PC required, just with the Mouse over the screen).

• Build in Ryeco camera comes with the Wi-Fi function to easy show the pictures or videos life to your patient (with your Samsung, iPhone or iPad / no additional cables needed!).

• Additional built-in beam splitter, to add on a second camera if needed (adapter also for NIKON and Canon Reflex cameras are upon request available).

• 12 months Swiss Warranty and Swiss Service from Ryf AG, Switzerland (Grenchen/SO, Winterthur/ZH and Commugny/VD)

• Installation and Training with Ryf trained technicians and experienced Swiss Dentist.

• Floor stand, wall mount or sealing mount are also available (including mounting and bolting by Ryf AG).

A Dental microscope or operating microscope is an optical microscope specifically designed to be used in a surgical setting, typically to perform microsurgery. Design features of an operating microscope are: magnification typically in the range from 4x-40x, components that are easy to sterilize or disinfect in order to ensure cross-infection control.  There is often a prism that allows splitting of the light beam in order that assistants may also visualize the procedure over a monitor and with a Full HD camera or to allow photography or video to be taken of the operating field.

An example of a procedure which commonly uses an operating microscope would be endodontic retreatment, where the magnification provided by the operating microscope improves visualisation of the anatomy present leading to better outcomes for the patient. It has been suggested that the well-focused illumination and magnification should be part of a standard of care in endodontic therapy. However , a Cochrane review found insufficient evidence to determine if the use of magnification devices has more advantage or positively affecting the outcome of the dental procedure.  Another example might be an anastomosis procedure carried out to join blood vessels in vascular surgery.

Typically an operating microscope might cost several thousand dollars for a basic model, more advanced models may be much more expensive. Additionally specialized microsurgical instruments may be required to make full use of the improved vision the microscope affords. It can take time to master use of an operating microscope. Fields of medicine that make significant use of the operating microscope include Plastic Surgery, dentistry (especially endodontics), ENT surgery, ophthalmic surgery, and neurosurgery.
